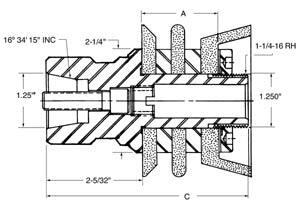

Associated Figure: WALTER HELITRONIC POWER CNC TOOL GRINDER ADAPTERS - 00509
Sopko Catalog #: 00509
Walter Part No: 385008-531
If it's high quality Walter HELITRONIC POWER CNC tool grinder adapters you're after, look no further. SOPKO sets the standard with features like PRECISION GROUND TAPERS, and CONCENTRICALLY GROUND AND SQUARE surfaces to prolong wheel life and optimize cutting conditions. SOPKO won't compromise on quality, so we use pre-heat treaded alloy steel for hubs, and THREAD GRIND OD THREADS to maximize safety.
WITH PROVEN PERFORMANCE FEATURES!
Precision Internal Tapers.
Tread Ground OD Threads.
Heat Treated Component Parts.
Concentric and Square Ground Surfaces.
Each adapter is furnished complete with:
00584 spindle bolt
01184 slotted spindle bolt retainer
*Spacers are not included.
| Taper | 16° 34' 15" INC |
| Large End ('G' Dimension) |
1.25 in. Large End |
| Wheel Locking Width ('A' Dimension) |
2 |
| Hub/Flange OD ('B' Dimension) |
2-1/4 |
| Overall Length ('C' Dimension) |
4-17/32 |
| Thread Size ('D' Dimension) |
1-1/4-16RH |
| Category | Sopko Adapters |
| Sub-Category | Special Adapters |
| Sub-Sub-Category | Walter Wheel Adapters |
| Thread Direction | Right Hand |
