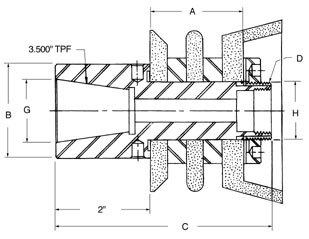

Associated Figure: TG7 ANCA RH ADAPTER AT902-0-01-5037

Request a Quote

TG7 ANCA RH ADAPTER AT902-0-01-5037

Sopko Catalog #: 50163

Product Overview & Dimensions

3.500 in. Taper Per Foot with 1.38 in. diameter at Large End of Taper. For 1.250 in. ID wheels. SOPKO quality ANCA FASTGRIND adapters are made for the operator expecting the highest standard of performance required by today's fast set-up times and short production runs. SOPKO assures this standard with quality features like PRECISION GOUND TAPERS for reliable spindle mating and CONCENTRICITY GROUND AND SQUARE surfaces to optimize cutting conditions and prolong wheel life. Hub OD threads are THREAD GROUND to assure safe, square wheel locking conditions and you can expect years of performance from these FASTGRIND adapters because SOPKO HEAT TREATS every one. Every ANCA adapter is furnished complete with a spindle mounting bolt, lock washer and recessed washer.
Taper 3.500 in. Taper Per Foot
Large End
('G' Dimension)		 1.38 in. Large End
Wheel Locking Width
('A' Dimension)		 2
Hub/Flange OD
('B' Dimension)		 2
Overall Length
('C' Dimension)		 4.613
Thread Size
('D' Dimension)		 1-1/4-16RH

Adapter Configuration

Category Sopko Adapters
Sub-Category Special Adapters
Sub-Sub-Category ANCA Wheel Adapters

Threading & Mounting

Thread Direction Right Hand

Physical Dimensions

Additional Features
