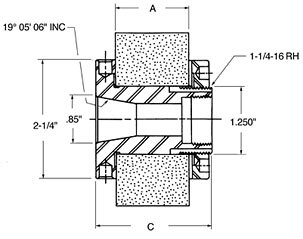

No Image Available TG4 ANCA RH ADAPTER ADJUSTABLE LONG figure

Associated Figure: TG4 ANCA RH ADAPTER ADJUSTABLE LONG

Request a Quote

TG4 ANCA RH ADAPTER ADJUSTABLE LONG

Sopko Catalog #: 00621

ANCA PART NO.

AT901-0-00-0175

Product Overview & Dimensions

HSK50EMOD Taper and 19°05'06" INC angle with .85 in. diameter at Large End of Taper. For 1.250 in. and 2.000 in. ID wheels. SOPKO Quality ANCA FASTGRIND adapters are made for the operaor expecting the highest standard of performance required by today's fast set-up times and short production runs. SOPKO assures this standard to optimize cutting conditions and prolong wheel life. Hub OD threads are THREAD GROUND to assure safe, square wheel locking conditions. Every ANCA adapter is furnished complete with a spindle mounting bolt, lock washer and recessed washer.
Taper 19°05'06" INC
Large End
('G' Dimension)		 .85 in. Large End
Wheel Locking Width
('A' Dimension)		 2-1/8 - 2-3/8
Overall Length
('C' Dimension)		 3-3/16
Thread Size
('D' Dimension)		 1-1/4-16RH

Adapter Configuration

Category Sopko Adapters
Sub-Category Special Adapters
Sub-Sub-Category ANCA Wheel Adapters

Threading & Mounting

Thread Direction Right Hand
