Product Overview & Dimensions

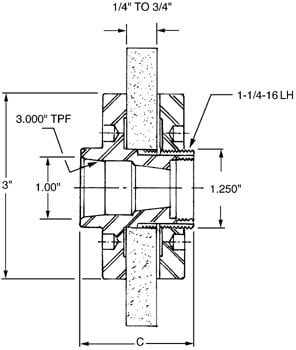

3.000 in. Taper Per Foot with 1.00 in. diameter at Large End of Taper. For 1.250 in. ID wheels. SOPKO quality Okamoto DX adapters are made for the operator expecting the highest standard of performance required by today's fast set-up times and short production runs. SOPKO assures this standard with quality features like PRECISION GOUND TAPERS for reliable spindle mating and CONCENTRICITY GROUND AND SQUARE surfaces to optimize cutting conditions and prolong wheel life. Hub OD threads are THREAD GROUND to assure safe, square wheel locking conditions and you can expect years of performance from these Okamoto DX adapters because SOPKO HEAT TREATS every adapter. Standard adapter for 6.18DX and 8.20DX saddle type surface grinders. *Comes complete with weight set SOP-00862
| Taper Per Foot |
3.000 in. Taper Per Foot |
| Overall Length (OAL) |
2-3/64 |
