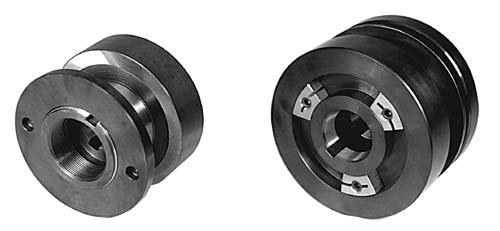

LARGE TAPER BOLT-ON FLANGE FOR LARGE GRINDERS 01313 BALANCING image
LARGE TAPER BOLT-ON FLANGE FOR LARGE GRINDERS 01313 BALANCING figure

Associated Figure: LARGE TAPER BOLT-ON FLANGE FOR LARGE GRINDERS 01313 BALANCING

Request a Quote

LARGE TAPER BOLT-ON FLANGE FOR LARGE GRINDERS 01313 BALANCING

Sopko Catalog #: 01313

Product Overview & Dimensions

These high performance, premium quality, balancing and non-balancing adapters are in a class by themselves. They feature the highest quality internal taper for precision spindle mounting, and pre-heat treated hubs and nuts for maximum strength, reliability, and long life. Precision ground surfaces and thread ground external threads provide unsurpassed wheel mounting parallelism for workpiece low-micro finishes.
Taper 3.000 in. Taper Per Foot
Large End
('G' Dimension)		 1.25 in. Large End
Wheel Locking Width
('A' Dimension)		 1/2 - 1
Hub/Flange OD
('B' Dimension)		 4-1/4
Overall Length
('C' Dimension)		 2-5/8
Thread Size
('D' Dimension)		 2-16RH
Keyway
('E' Dimension)		 1/4

Adapter Configuration

Category Sopko Adapters
Sub-Category Special Adapters
Sub-Sub-Category Large Diameter Wheel, Balancing

Threading & Mounting

Thread Direction Right Hand

Additional Features
