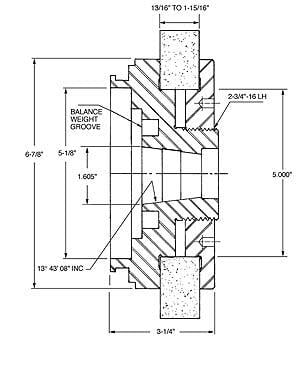

No Image Available JONES & SHIPMAN SERIES 1310 BALANCING LH ADAPTER figure

Associated Figure: JONES & SHIPMAN SERIES 1310 BALANCING LH ADAPTER

Request a Quote

JONES & SHIPMAN SERIES 1310 BALANCING LH ADAPTER

Sopko Catalog #: 01836

Product Overview & Dimensions

Jones & Shipman 1310 series universal cylindrical grinder balancing adapter features a 13° 43' 08" INC taper for precise spindle mounting and Balancing weights. For 5.000 in. ID wheels. Precision ground surfaces thread ground threads provide unsurpassed wheel mounting parallelism for workpiece low-micro finishes. The adapter is furnished with a three-piece bronze balancing weight set 00861.
Taper 13° 43' 08"
Large End
('G' Dimension)		 1.605 in. Large End
Wheel Locking Width
('A' Dimension)		 13/16 - 1-15/16
Overall Length
('C' Dimension)		 3-1/4
Thread Size
('D' Dimension)		 2-3/4-16LH

Adapter Configuration

Category Sopko Adapters
Sub-Category Special Adapters
Sub-Sub-Category Jones Shipman Wheel Adapters, Balancing

Threading & Mounting

Thread Direction Left Hand
