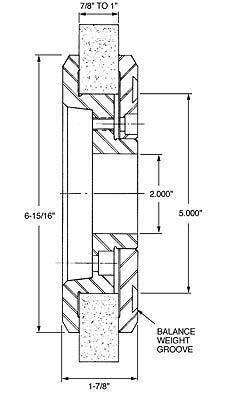

Associated Figure: JONES & SHIPMAN SERIES 1076 BOLT-ON ADAPTER
Sopko Catalog #: 01195
Jones & Shipman 1076 series surface grinder adapter features a Straight Bore, Bolt-on flange and Balancing weights. For 5.000 in. ID wheels. Two precision ground surfaces provide incomparable rigidity, and identical load bearing surfaces for the positive wheel lock and spindle driving torque that optimum surface finishes require. Manufactured from pre-heat treaded alloy steel, the adapter is furnished with a three-piece steel balancing weight set 00859, three 5/16-18RH x 1/2 in. SHCS 05941 flange bolts.
| Taper | STRAIGHT BORE |
| Large End ('G' Dimension) |
2.00 in. Bore |
| Wheel Locking Width ('A' Dimension) |
7/8 - 1 |
| Overall Length ('C' Dimension) |
1-7/8 |
| Category | Sopko Adapters |
| Sub-Category | Special Adapters |
| Sub-Sub-Category | Balancing, Jones Shipman Wheel Adapters, Bolt-On, Straight Bore |
